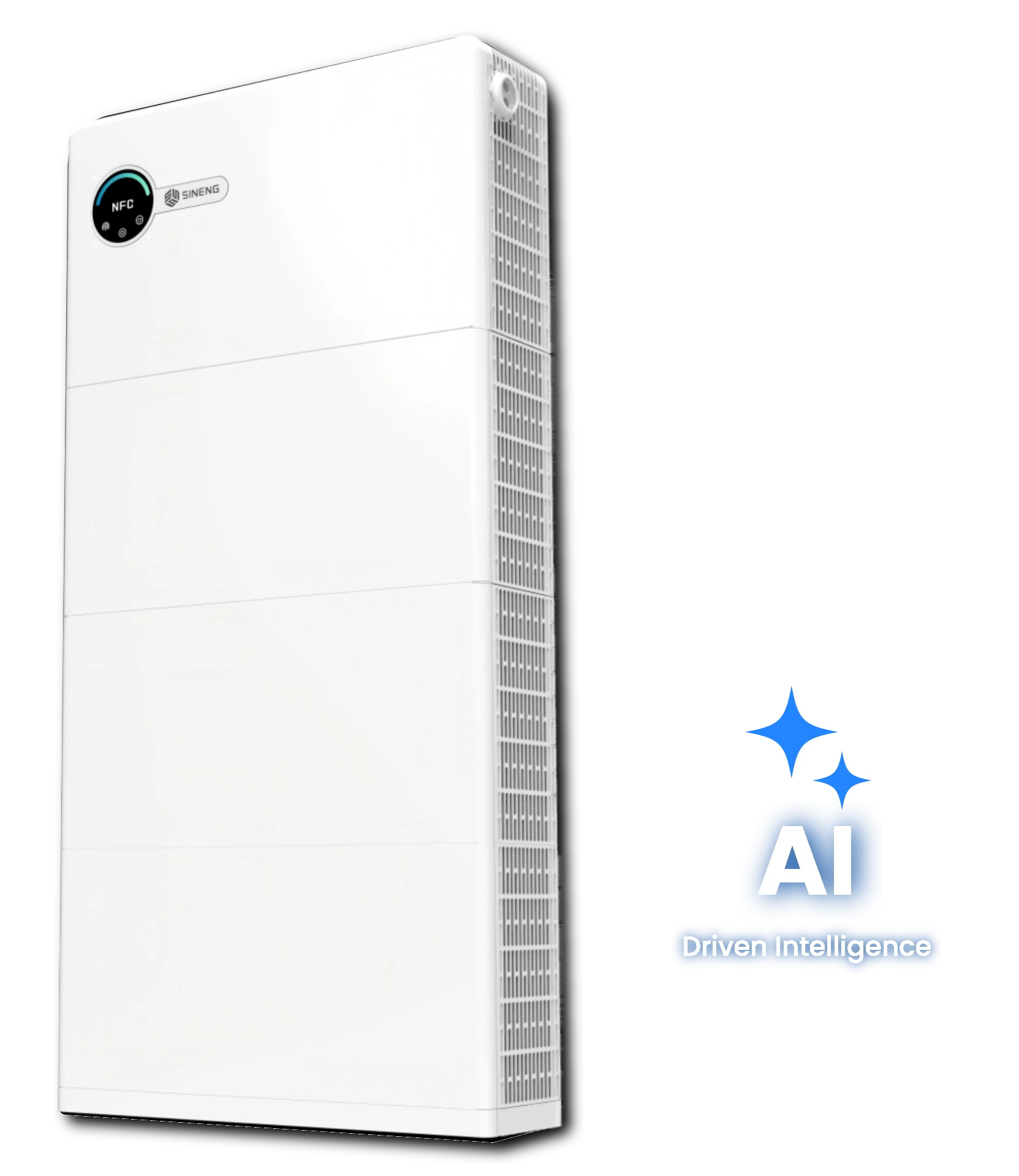

TUREON All-in-One 12 kW with 25.6 kWh storage

12 kW Output Power
25.6 kWh Battery Capacity
3 × 25.6 kWh LFP Modular Batteries

Emergency Power Supply (Essential Loads)

Smart Compact Design

Ultra Low Noise Operation

High System Reliability

For Compact Homes

Recommended retail price excl. VAT. General terms and conditions apply. VAT is often reclaimable by private individuals as well.

Technical Specifications

Inverter power
12 kWp
PV input
Max. 18 A, 3 MPPTs, 160–950 V
Mains voltage
220/380 V 230/400 V 50/60 Hz
Emergency switching time
< 10 ms
Cooling
Passive
Storage capacity
25.6 kWh (4 modules)
Battery type
LFP (lithium iron phosphate)
Cell technology
3.2 V / 335 Ah · 1P6S
Battery voltage
361.2 – 492.75 V
Grid-forming
Yes
Dimensions
780 × 1973 × 251 mm
Weight
302.25 kg
Protection class
IP66
Operating temperature
-25 °C to +60 °C
Lifespan

Technical Specifications

Specifications
Dimensions & Weight
Safety
Download
Inverter power
10 kWp
PV input
Max. 18 A, 3 MPPTs, 160–1000 V
Mains voltage
220/380 V 230/400 V 50/60 Hz
Emergency switching time
< 10 ms
Cooling
Passive
Storage capacity
19.2 kWh (3 modules)
Battery type
LFP (lithium iron phosphate)
Cell technology
3.2 V / 335 Ah · IP65
Battery voltage
361.2 – 492.75 V
Grid-forming
Yes
